The Lynx 3.0 , redefining entry-level thermal imagers. The HIKMICRO LH19 delivers outstanding thermal clarity, AI image processing, and a 900m detection range , engineered for professionals who demand precision and reliability.
The Lynx 3.0 , redefining entry-level thermal imagers.

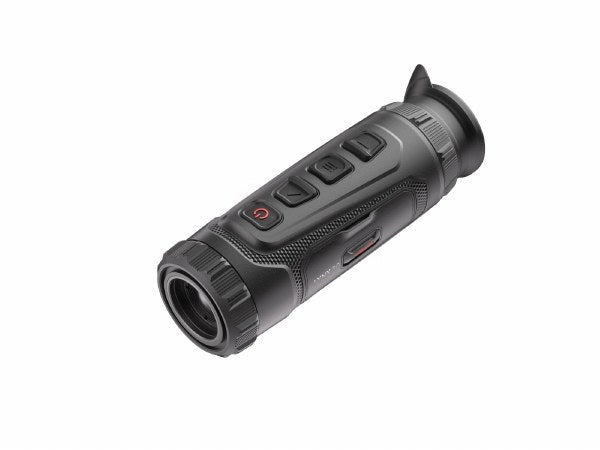

The HIKMICRO Lynx 3.0 LH19 sets a new benchmark in portable thermal optics. Equipped with a 384x288 thermal detector and a 19mm F1.0 lens, it delivers 1.9x base magnification, a 13.8° field of view, and a 900-metre detection range, providing sharp detail and versatile coverage for professionals in the field.
Enhanced with AI-powered Image Pro 3.0 and Zoom Pro algorithms, the LH19 ensures superior contrast and detail recognition. Its HIKMICRO Shutterless Image System (HSIS) guarantees smooth, noise-free imaging , ideal for discreet and continuous observation.
Built with durability in mind, the LH19 weighs 331 grams and is powered by a replaceable 18650 battery, offering 4.5 hours’ runtime at -20°C. Compact, ergonomic, and performance-driven, it’s a premium choice for professionals demanding exceptional image quality in a lightweight body.
Image Sensor
VOx Uncooled Focal Plane Arrays
Max. Resolution
384 × 288
Frame Rate
50 Hz
Pixel Interval
12 μm
Response Waveband
8 μm to 14 μm
NETD
Less than 15 mK (@25°C), F#=1.0
Lens (Focal Length)
19 mm, F1.0
Focus Mode
Focus Wheel
Min. Focusing Distance
3 m
Magnification
1.9 × - 15.2 × (8×)
Field of View (H × V), Degrees / m @100 m
13.8° × 8.4° / 24.2 m × 14.7 m
Detection Range
900 m
Display
1920 × 1080, 0.49 inch, AMOLED
Contrast Adjustment
Yes
Brightness Adjustment
Yes
Palettes
Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil
6 mm
Eye Relief
20 mm
Diopter (Range)
-5 D to +3 D
Tone Adjustment
Cold, Warm
Zoom Pro
Yes
HSIS (HIKMICRO Shutterless Image System)
Yes
Image Pro 3.0
Yes
Sync Pro
Yes
Battery Type
Replaceable and rechargeable 18650 battery
Protection Level
IP67
Weight
331 g with Battery
