The Lynx 3.0 , redefining entry-level thermal imagers , the HIKMICRO Lynx 3.0 LE10 offers precise short-range thermal imaging with AI enhancement, shutterless technology, and exceptional battery life in a lightweight, professional-grade design.
The Lynx 3.0 , redefining entry-level thermal imagers.

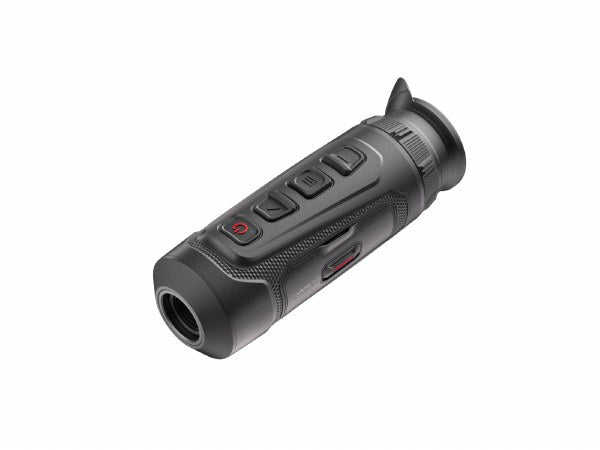

The HIKMICRO Lynx 3.0 LE10 is designed for professionals seeking compact, high-value thermal imaging for close-range observation. Equipped with a 256x192 thermal detector and a 9.7mm F1.0 lens, it provides a 1.4x base magnification and an 18° field of view, delivering clear, detailed imaging across a detection range of up to 500 metres.
Powered by AI-driven Image Pro 3.0 and Zoom Pro algorithms, the LE10 ensures exceptional image sharpness and stability, even in challenging environments. The HIKMICRO Shutterless Image System (HSIS) guarantees silent, seamless image processing, enabling uninterrupted operation during critical tasks such as wildlife observation, surveillance, or search and rescue.
Built for efficiency and endurance, the LE10 features a replaceable 18650 battery delivering up to 5.5 hours of runtime at -20°C. Compact and lightweight at just 291.5 grams, it’s pocket-sized yet robust enough for demanding field use. This is the ideal thermal monocular for users who require reliability, precision, and value in one professional package.
Image Sensor
VOx Uncooled Focal Plane Arrays
Max. Resolution
256 × 192
Frame Rate
50 Hz
Pixel Interval
12 μm
Response Waveband
8 μm to 14 μm
NETD
< 20 mK (@25°C), F# = 1.0
Lens (Focal Length)
9.7 mm, f/1.0
Focus Mode
Focus Free
Detection Range
500 m
Minimum Focusing Distance
3.4 m
Magnification
1.4× – 11.2× (8× digital zoom)
Field of View (H × V), Degrees / m @100m
18.0° × 13.6° / 31.7 m × 23.8 m
Display
1024 × 768, 0.39-inch, AMOLED
Palettes
Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil
6 mm
Eye Relief
20 mm
Diopter Range
-5D to +3D
Brightness Adjustment
Yes
Tone Adjustment
Cold, Warm
Contrast Adjustment
Yes
Zoom Pro
N/A
HSIS (HIKMICRO Shutterless Image System)
Yes
Image Pro 3.0
Yes
Sync Pro
Yes
Record Video
Yes
Capture Snapshot
Yes
Audio Recording
Yes
Standby Mode
Yes
Built-in Memory
EMMC (64 GB)
PIP (Picture-in-Picture)
Yes
Hotspot
2.4 GHz / 5 GHz Wi-Fi Waveband
Hot Track
Yes
Distance Measurement
Yes
Local Album
Yes
Battery Type
Replaceable and Rechargeable Li-ion 18650 Battery
6 hours continuous running with hotspot on (@25°C)
5.5 hours continuous running with hotspot on (@-20°C)
Type-C Power Supply
DC 5V / 2A
Supports External Power Supply and Direct Charging
Protection Level
IP67
Dimensions
152.4 × 53.6 × 49.5 mm
Weight
291.5 g (with battery)
Working Temperature
-30°C to 45°C (-22°F to 113°F)
Humidity
90% or less
