The Lynx 3.0 , redefining entry-level thermal imagers. The HIKMICRO LH25 delivers long-range thermal imaging with AI clarity, silent shutterless operation, and extended endurance , built for precision and field performance.
The Lynx 3.0 , redefining entry-level thermal imagers.

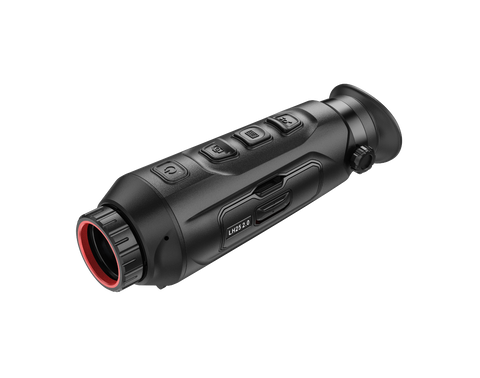

The HIKMICRO Lynx 3.0 LH25 is built for professionals requiring extended range and precision. With a 384x288 thermal detector and a 25mm F1.0 lens, it delivers 2.5x base magnification, a 10.5° field of view, and a 1200-metre detection range, ensuring exceptional long-distance performance.
Driven by AI Image Pro 3.0 and Zoom Pro algorithms, the LH25 enhances image detail and consistency under all lighting conditions. Its HSIS shutterless system ensures fluid, silent image processing for uninterrupted use in tactical or wildlife applications.
Weighing only 328.5 grams, the LH25 combines portability with rugged dependability. The replaceable 18650 battery powers up to 4.5 hours at -20°C, ensuring sustained operation for demanding professionals. Designed for open landscapes and technical use, it sets a new standard in thermal imaging efficiency.
Image Sensor
VOx Uncooled Focal Plane Arrays
Max. Resolution
384 × 288
Frame Rate
50 Hz
Pixel Interval
12 μm
Response Waveband
8 μm to 14 μm
NETD
Less than 15 mK (@25°C), F#=1.0
Lens (Focal Length)
25 mm, F1.0
Focus Mode
Focus Wheel
Min. Focusing Distance
3 m
Magnification
2.5 × - 20 × (8×)
Field of View (H × V), Degrees / m @100 m
10.5° × 6.4° / 18.4 m × 11.2 m
Detection Range
1200 m
Display
1920 × 1080, 0.49 inch, AMOLED
Contrast Adjustment
Yes
Brightness Adjustment
Yes
Palettes
Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil
6 mm
Eye Relief
20 mm
Diopter (Range)
-5 D to +3 D
Tone Adjustment
Cold, Warm
Zoom Pro
Yes
HSIS (HIKMICRO Shutterless Image System)
Yes
Image Pro 3.0
Yes
Sync Pro
Yes
Battery Type
Replaceable and rechargeable 18650 battery
Protection Level
IP67
Weight
328.5 g with Battery
